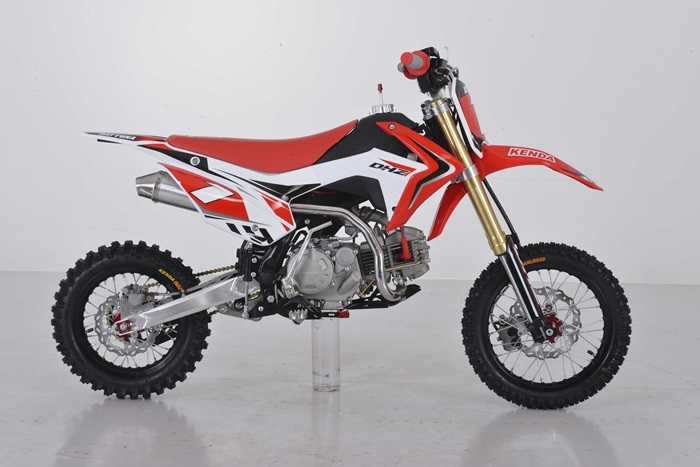

2015 pitbike

Update：2018/12/20 10:51:25 View：1773

Type： 2015 pitbike

Description：

英文描述

Introduction

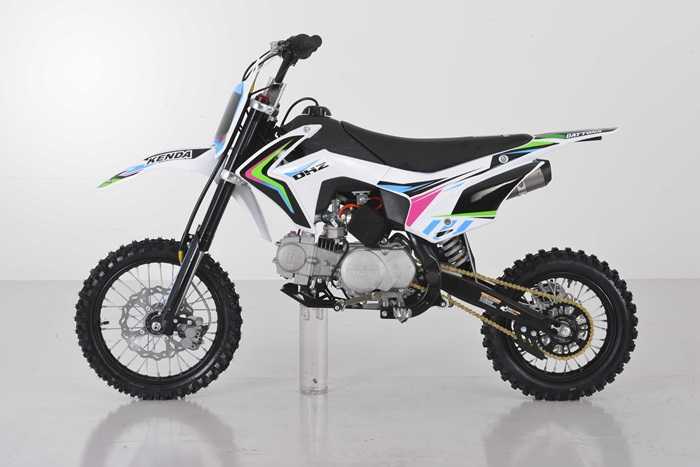

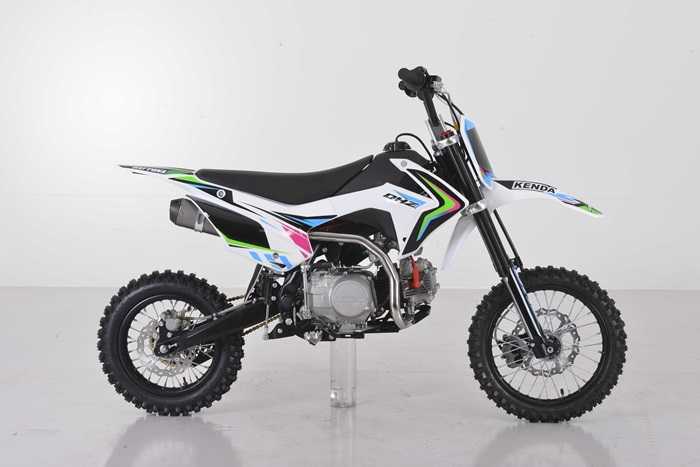

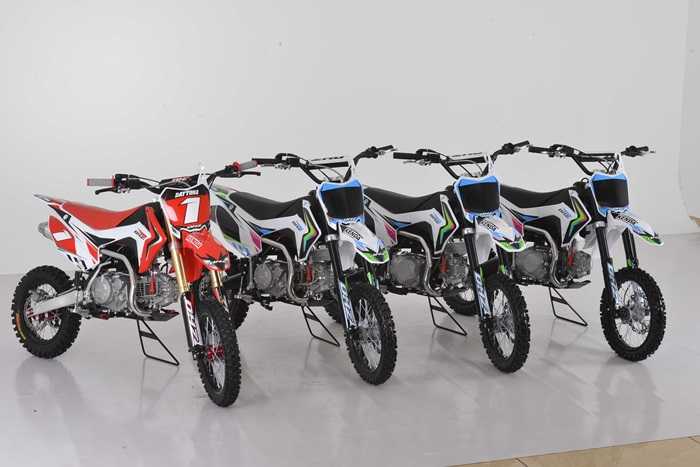

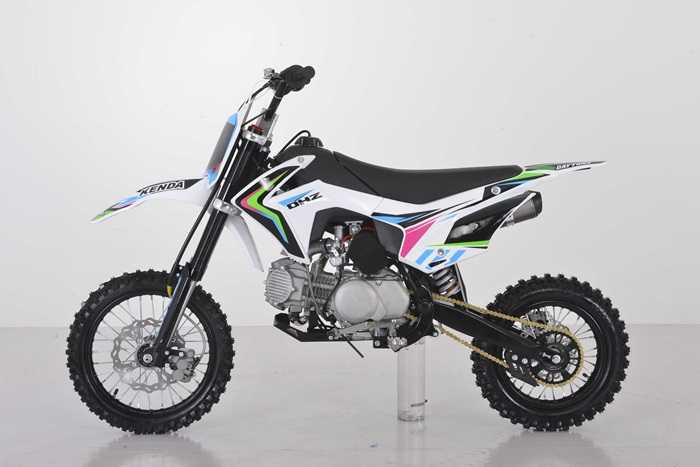

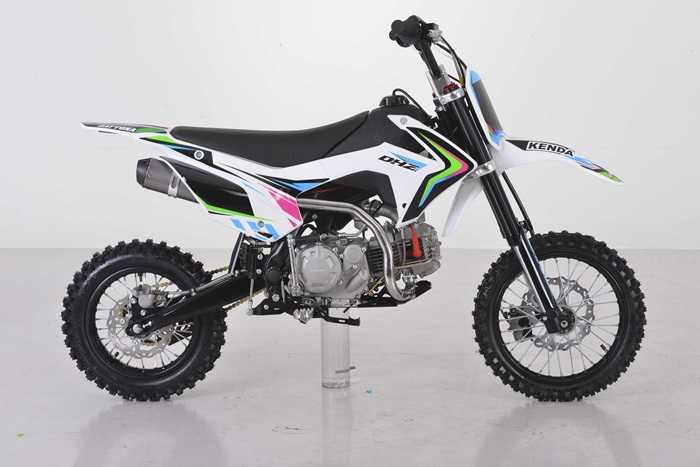

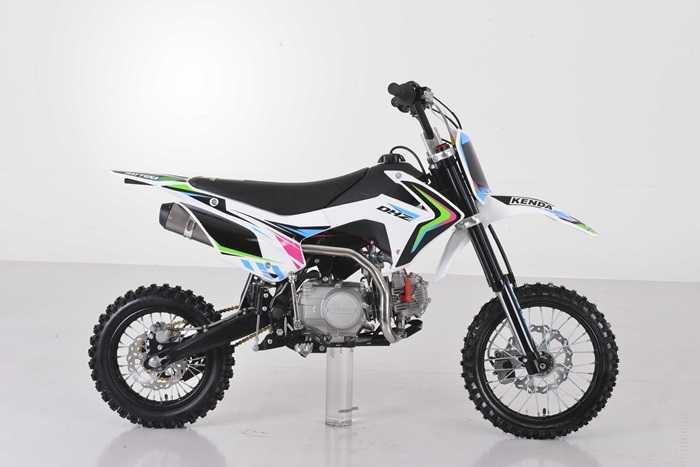

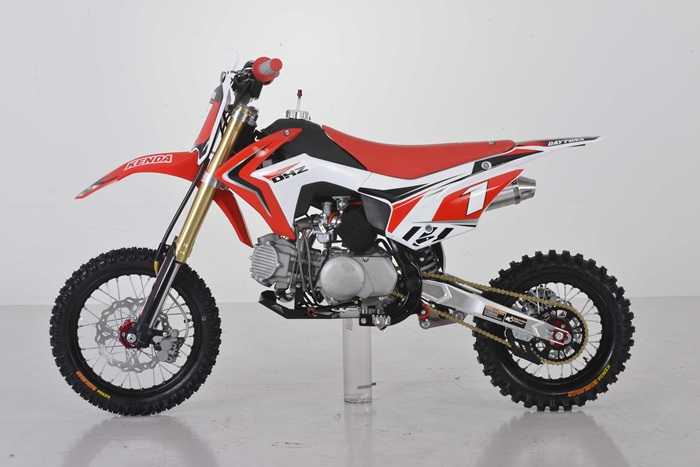

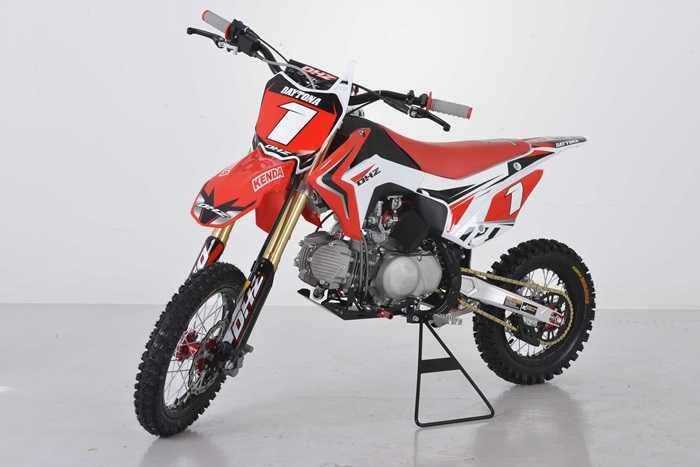

2015 new pitbike ,accept preorder now :)

V1-125CC /V1-140CC /V1-160CC /V1-160LR

mail us hpminis@126.com

to get pricelist :)

CODE		MODEL	V1-125CC	V1-140CC	V1-160CC	V1-160LR
1		TANKS（L)	5.2L	5.2L	5.2L	5.2L
2		Groundclearance (mm)	280	280	280	280
3		LENGTH(mm)	1650	1650	1650	1700
4		WIDTH(mm)	750	750	750	820
5		SEAT HEIGHT(mm)	780	780	780	755
6		WHEELBASE(mm)	1170	1170	1170	1200
7		NET WEIGHT（kg）	71	74	76	75
8		PACKAGES（mm）	*1485395765*	*1485395765*	*1485395765*	*1485395765*
9		TOTAL WEIGHT（kg）	83	86	88	87
10		FRONT WHEEL	1.4X14	1.4X14	1.4X14	1.4X14
11		FRONT TIRE	60/100-14	60/100-14	60/100-14	60/100-14
12		REAR WHEEL	1.85X12	1.85X12	1.85X12	1.85X12
13		REAR TIRE	80/100-12	80/100-12	80/100-12	80/100-12
14		FRONT DISC(MM)	220	220	220	220
15		REAR DISC(mm)	190	190	190	190
ENGINE
1	Spec		SINGLE ,AIR COLDER	SINGLE、OILCOOLER	SINGLE、OILCOOLER	SINGLE、OILCOOLER
2	Model		LF1P52FMI	LF1P55FMJ	ZS1P60YMJ	ZS1P60YMJ
3	Bore × Stroke		52.4x55.5mm	55x59mm	60x55mm	60x55mm
4	Displacement		120mL	140mL	155.5mL	155.5mL
5	Compression ratio		9.0:1	9.0:1	11.5:1	11.5:1
6	Max Power/ rotational speed		5.8kw/7500r/min	8kw/7500r/min	10.5kw/9500r/min	10.5kw/9500r/min
7	Maximumtorque / SPEED		8.5N.m/5000r/min	9.5N.m/5000r/min	11N.m/8000r/min	11N.m/8000r/min
8	Ignition and spark plug type		CDI,A7TC	CDI,A7TC	CDI,NGK	CDI,NGK
9	Valve clearance		0.05mm	0.05mm	0.05mm	0.05mm
10	CLUTCH		Wet multi-plate	Wet multi-plate	Wet multi-plate	Wet multi-plate
11	Transmission		Left shift, the fourth gear constant mesh	Left shift, the fourth gear constant mesh	Left shift, the fourth gear constant mesh	Left shift, the fourth gear constant mesh
12	Primary drive ratio		3.722	3.722	2.62	2.62
14	Gear ratio		2.833/1.706/1.238/0.958	3.182/1.706/1.238/0.9	3.18/1.71/1.30/1.04	3.18/1.71/1.30/1.04
15	Fuel Grades		RQ-93	RQ-93	RQ-93	RQ-93
16	Grade lubricants		15W/40-SE Four-stroke engine	15W/40-SEFour-stroke engine	20W/50Four-stroke engine	20W/50Four-stroke engine
17	capacity of lubricant		900mL	900mL	950mL	950mL
18	Dimensions		470x260x210mm	470x275x280mm	495x355x325mm	495x355x325mm
19	Loading Qty		20GP/54pcs ,40GP/120pcs	20GP/54pcs ,40GP/120pcs	20GP/54pcs ,40GP/120pcs	20GP/54pcs ,40GP/120pcs
