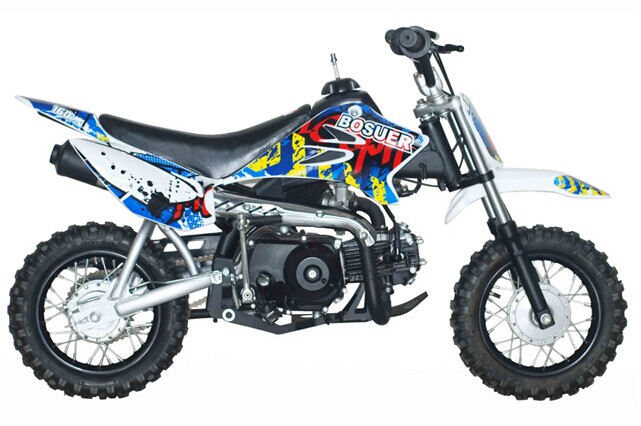

TTR50 STYLE PITBIKE FOR YOUNG KIDES. 50CC SEMI AUTO ENGINE, EASY TO CONTROL AND OPERATION. AN EXCEITING BIKES FOR YOUNG KIDS ENTERTAINMENT.
|
ENGINE |
|
|
Engine type: |
50CC, single cyclinder, 4-stroke, air cooled, semi auto |
|
Bore X Stroke: |
39X41.4mm |
|
Compression Ratio: |
9.0:1 |
|
Max power |
2.0kw/7500r/min +/-375r/min |
|
Min Fuel Consumption |
<=367g/KW.H |
|
Max torquer: |
2.5N.m/ 5000r/min +/-250r/min |
|
Transmission system |
4 speed, international gear |
|
lgnition mode |
CDI |
|
Clutch |
Semi auto |
|
CHASSIS |
|
|
Frame |
High strengthened steel |
|
Swing arm: |
Steel, A shape, new design |
|
Suspension system |
Front fork:size:27-480mm, normal fork Rear shock: 270mm |
|
Brake system |
Drumb brake front and rear |
|
Maximum load |
187lb/(85kgs) |
|
Tank Capacity |
0.64gal(us)/(2.4L) |
|
G.W/N.W |
154lb/143lb(70kgs/65kgs) |
|
Carburetor |
JINKE PZ19 |
|
Dimensions(L*W*H) |
1400mmx*690mm*790mm |
|
Carton size |
1195mm*355mm*640mm |
|
Container |
81units 20"FCL 180units 40" FCL 216units 40HQ FCL |
|
Seat Height |
39in/560mm |
|
Wheel base |
57in/950mm |
|
Ground Clearance |
6in/160mm |
|
Engine and Rear sprocket |
14/37T, 420# Chains. |
|
Rim Size |
Front 1.6-10/ Rear 1.6-10 |
|
Tire size |
Front/Rear: 2.50-10 2.50-10 |
