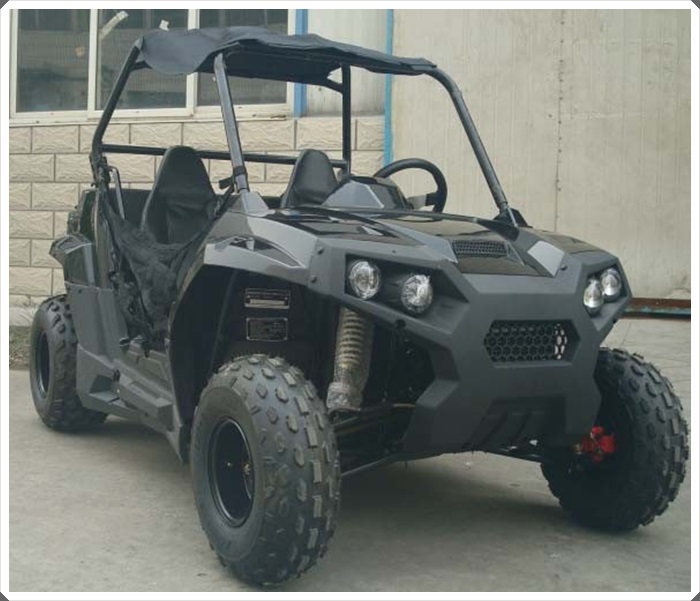

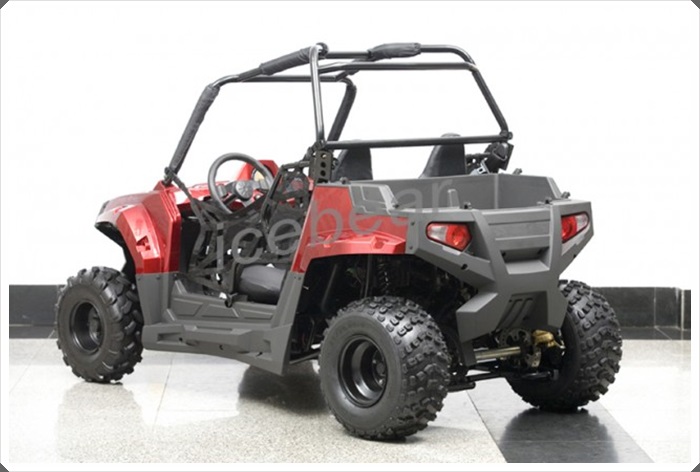

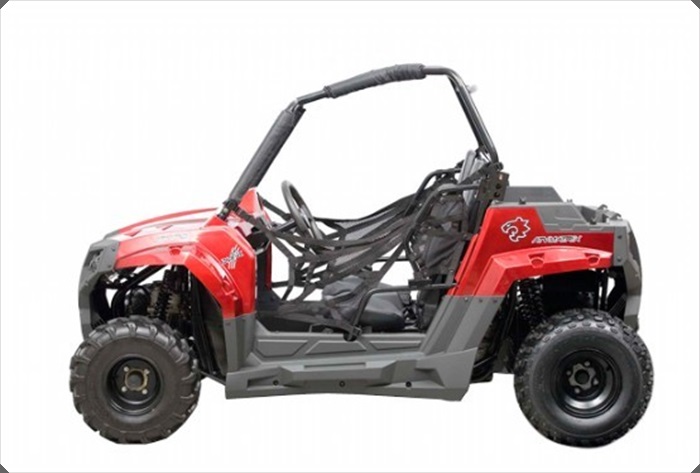

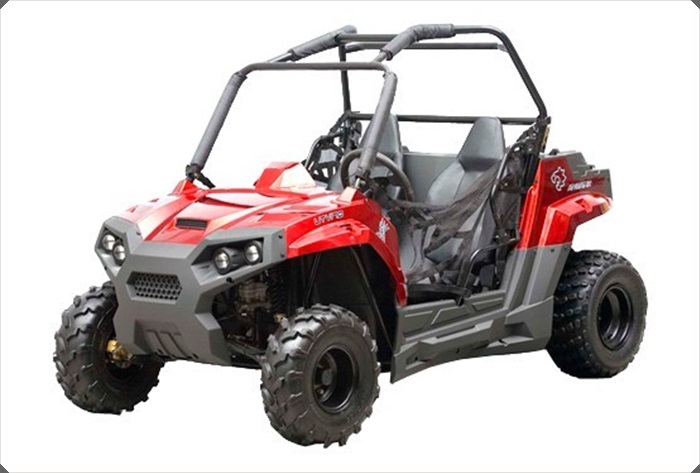

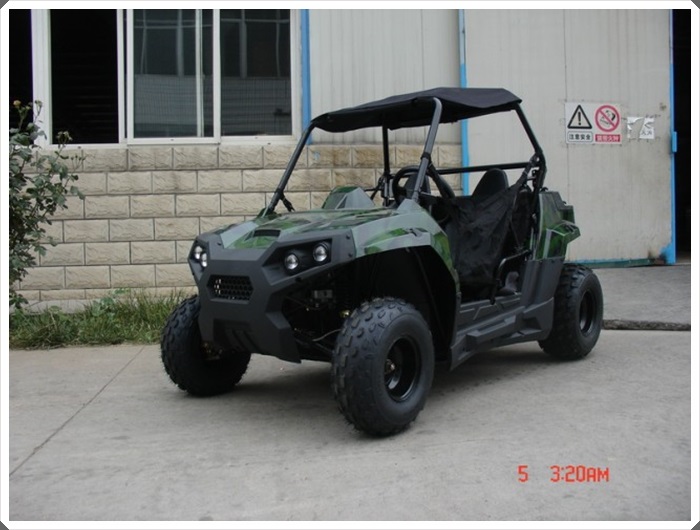

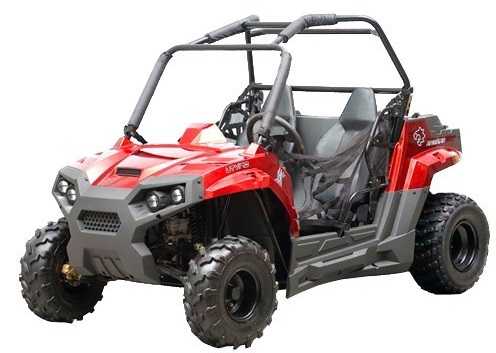

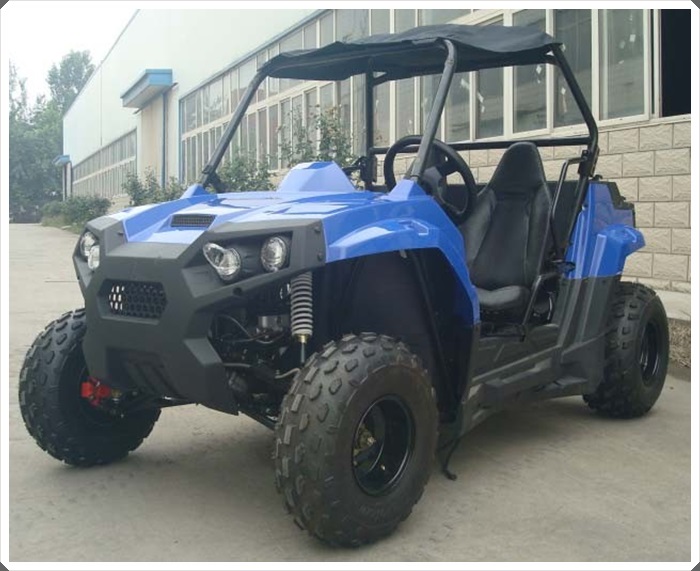

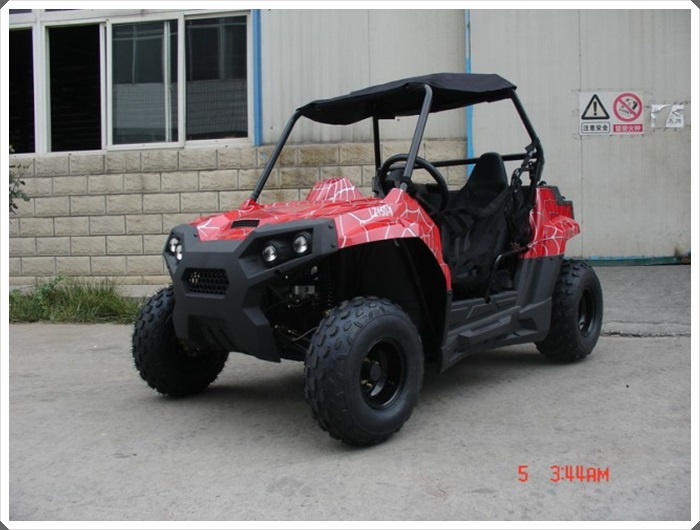

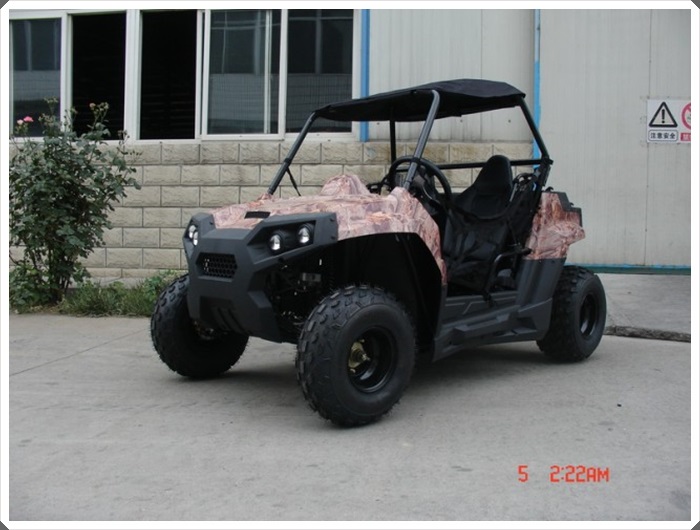

ODES 150CC KIDS UTV
Proven GY6 150cc 4 stroke engine offers strong, reliable performance and
Full auto CVT transmission with reverse
Powerful Dual Hydraulic front and single rear disc brakes
Lever style parking brake
Turn key electric start

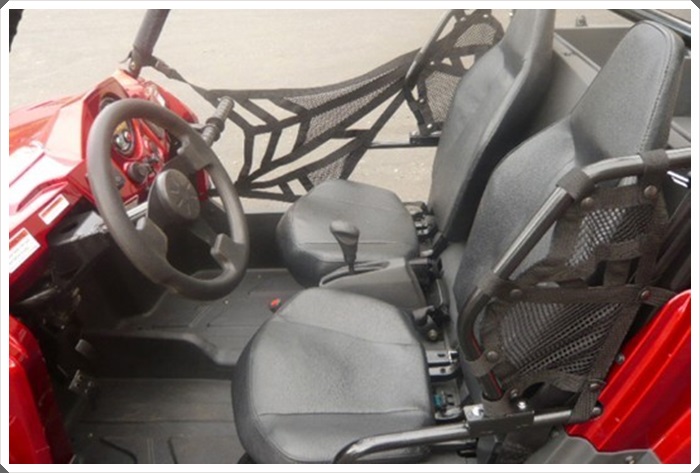

Adjustable driver's seat
Passenger grab handle

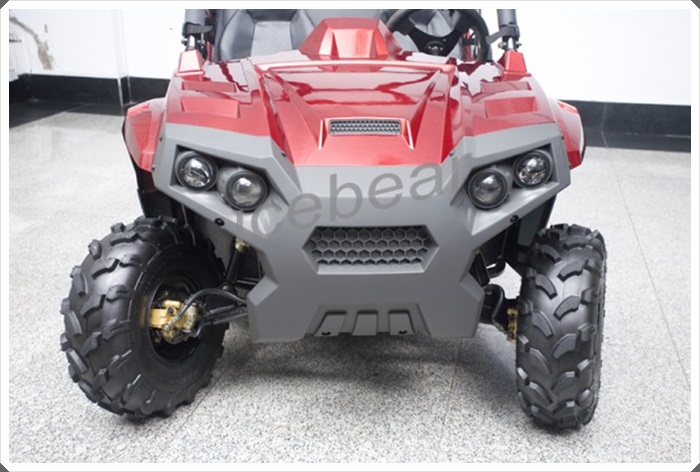

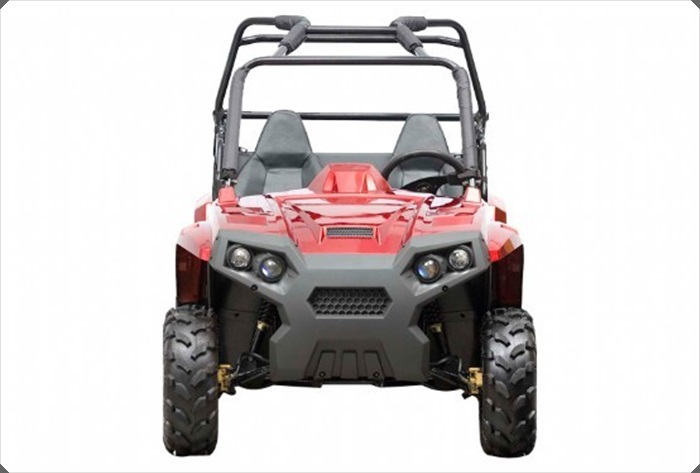

Dual Projector Headlights w/ Daytime running lights for better visibility

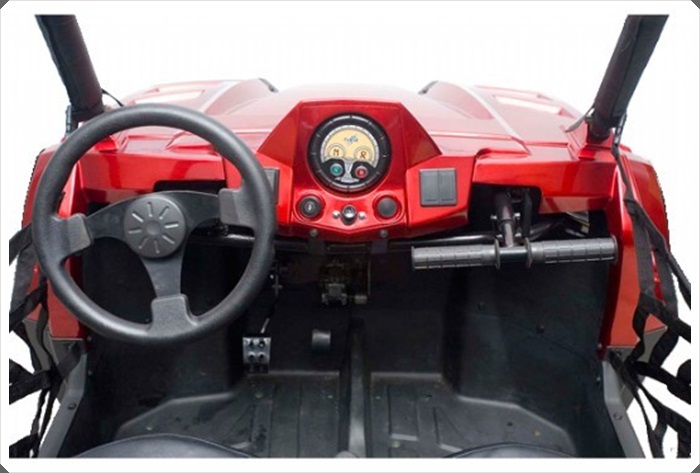

Ergonomic Steering Wheel
Independent Double A-Arm front Suspension
Lightweight Alloy Wheels w/ All Terrain tires

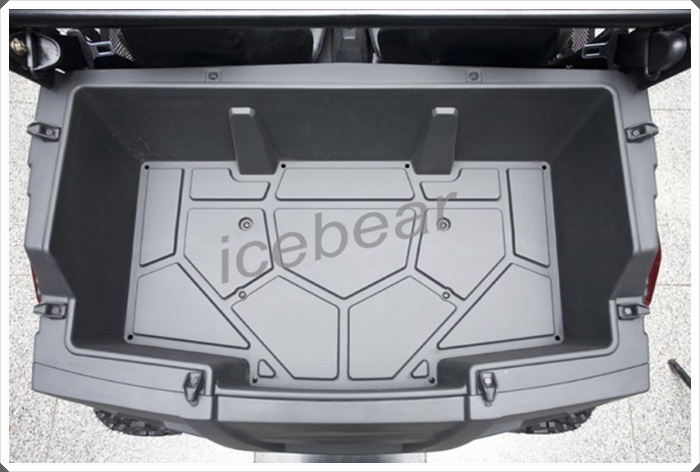

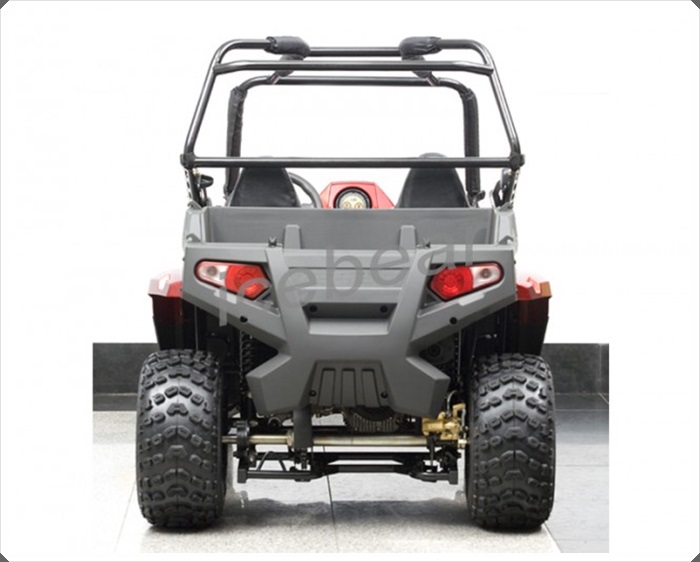

Rear cargo box with tie down points
Dual rear brake lights with signal light feature
Standard Safety netting
3 point seat belt for driver and passenger
Engine Type 150cc, 4-Stroke
Cooling System Air-Cooled
Max Horsepower 10.3 HP Top Speed 35-38M/H
Transmission/Clutch Fully Automatic
Number of Gears N/A
Final Drive Chain
Starting System Electric
Ignition CDI
Max Torque 9.8 N.m(4000r/min) Rated Power & Rotate Speed: 6.8 KW (5500r/min)
Battery 12V/9Ah
Fuel Capacity 3.3 gallons
Reverse yes
Frame Reinforced Steel Tube
Front Suspension Dual Independent
Rear Suspension Dual Shock
Front Brake Hydraulic Disc

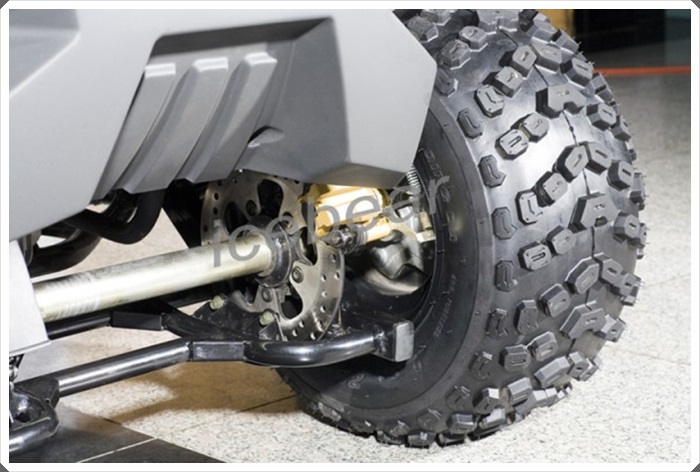

Rear Brake Hydraulic Disc Brake
Front Tire 19*7-8 (Front Wheel Size: 8*5.5)
Rear Tire 20*10-9 (Real Wheel Size: 9*8)
Age Recommendation 12+
Speed Governor No
Lighting Head light, low- high beam, Blinkers, Tail lights
Weight Capacity 550 lbs
Number of Riders 2
Dry Weight 540lbs
Overall Length 88.6 " x 48" x 55"
Warranty Engine 1 year;
Carton Size 90" X 52" X 34"
Assembly Roll Cage, mirror and some other minor assembly are required
Restrictions Off road use only, not street legal. CA customers please call for detail
PRODUCT DESCRIPTION
| ENGINE | |
| ENGINE TYPE | Four stroke, single cylinder, OHV |
| IGNITION | CDI |
| COOLING | Air/oil cooled |
| DISPLACEMENT | 149cc |
| BORE AND STROKE | 57mm x 57.8 mm |
| COMPRESSION RATIO | 9.2:1 |
| STARTING SYSTEM | Electric Start |
| CHOKE SYSTEM | Manual Choke |
| DRIVE TRAIN | |
| TYPE | Rear wheel drive |
| FINAL DRIVE | Chain-drive |
| TRANSMISSION | Full auto CVT with reverse |
| BRAKES | |
| FRONT | Dual hydraulic disc |
| REAR | Single axle hydraulic disc |
| SUSPENSION | |
| FRONT | Dual A-arm independent, with 10 cm (4”) travel |
| REAR | Single axle dual shocks with 12.7 cm (5”) travel |
| TIRES AND WHEELS | |
| FRONT | 19” x 7”-8” on alloy |
| REAR | 20” x 10”-9” on alloy |
| DIMENSIONS | |
| OVERALL VEHICLE SIZE | 217 cm x 123 cm x 141.5 cm(85.4” x 48.4” x 55.7”) |
| WHEELBASE | 168.5 cm (66.4”) |
| GROUND CLEARANCE | 150 mm (6”) |
| DRY WEIGHT | 228 kgs (503 lbs) |
| FUEL CAPACITY | 12 L |
